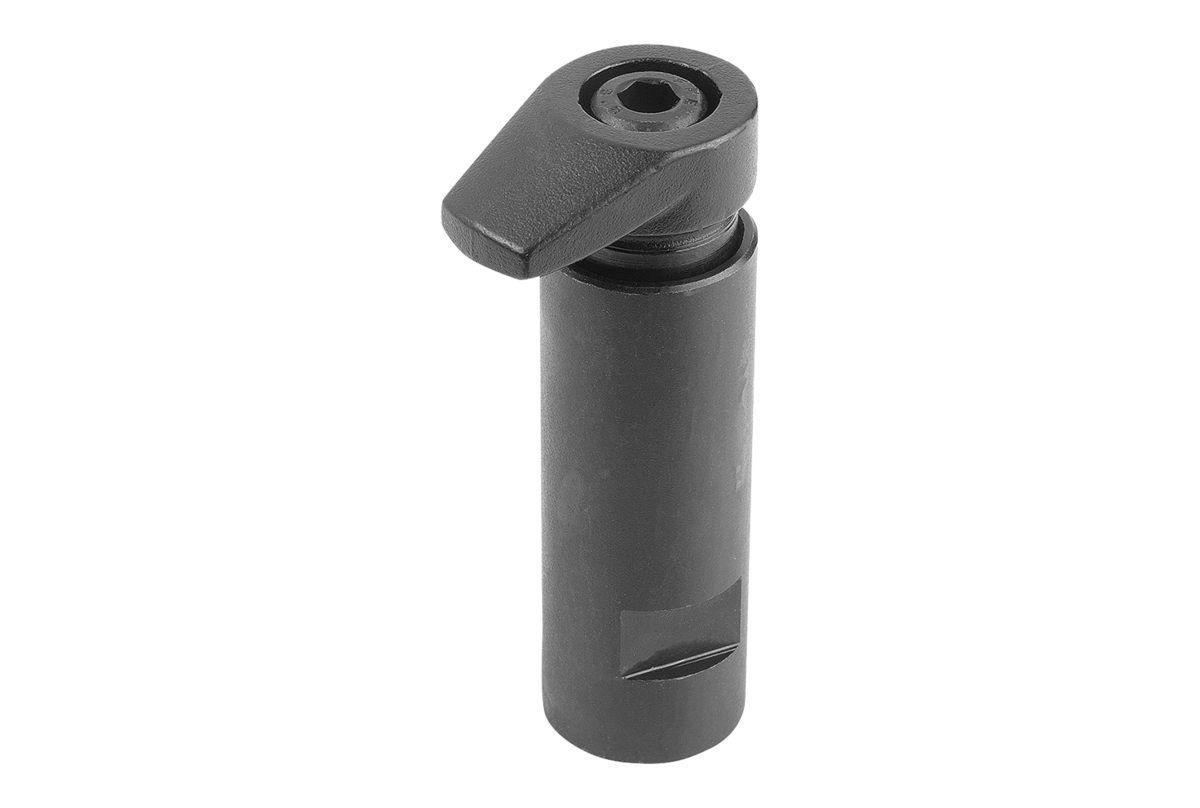

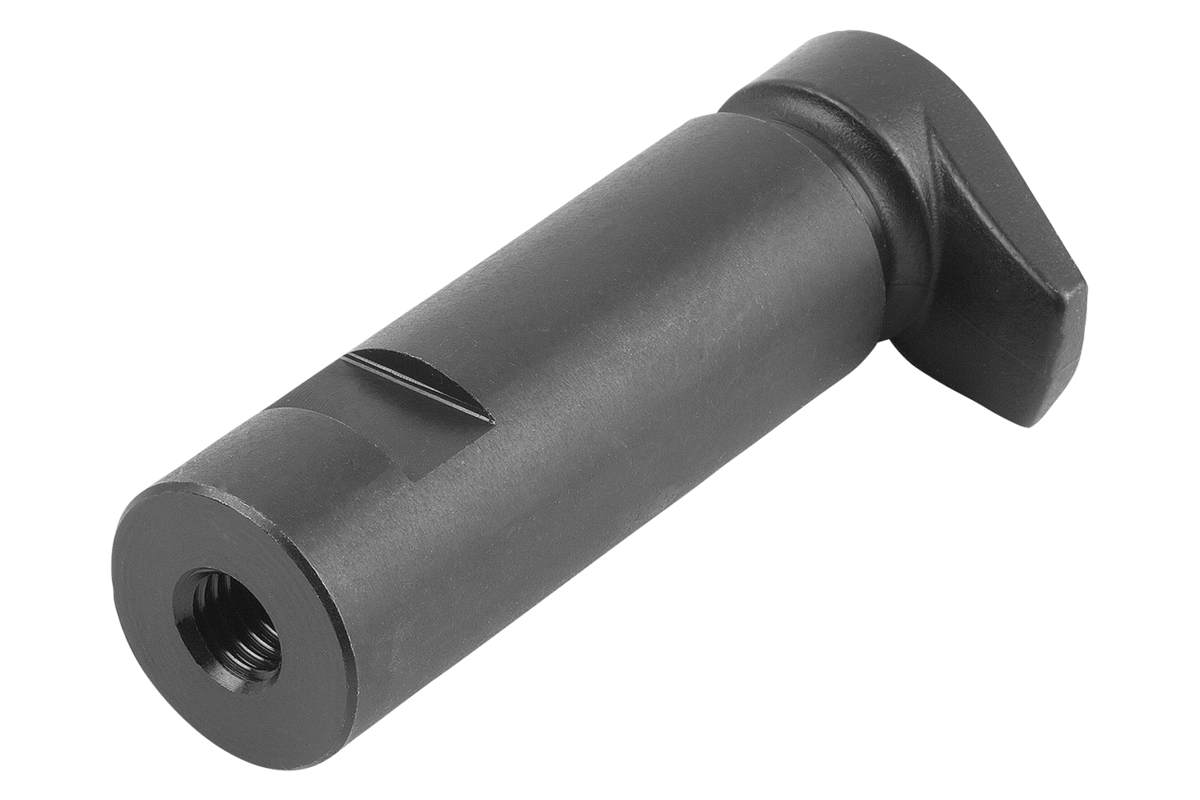

Hook Clamp
with collar
QT steel
tempered, black oxidised
- Flexible application
- Application sectors: machine construction, toolmaking, fixture construction
- For clamping any workpiece and component
- Low space requirement
Sales unit
€71.28
plus sales tax
norelem.product.details.availability.details.offline
Added to your shopping cart
Designation
Hook Clamp
Version 1
with collar
Body material
QT steel
Body surface finish
tempered, black oxidised
D1=Diameter
20
D=Thread
M08
F=Retaining force kN
8,77
H=Height
56
L1=Thread length
9
C
M06
D2
6
H1
60
H2
53
H3
10
L
11
L2
8
P
8
R
9
R1
20
T
17
Description
Material
Carbon steel.
Version
Tempered and black oxidised.
