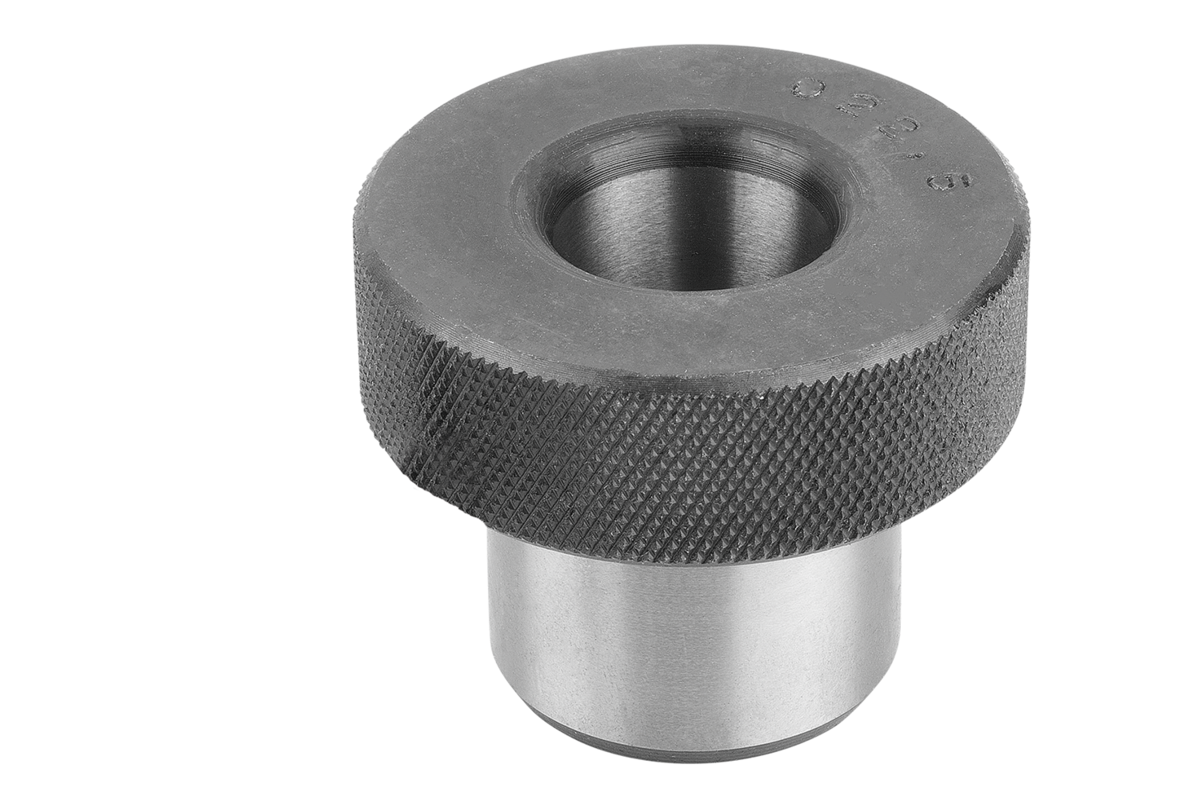

Replaceable Drill Bush
with collar
mild steel
- Quick replacement possible without tools
- Torque bracing possible by dowel pin
- Hardened and ground
Sales unit
105,92 €
plus sales tax
norelem.product.details.availability.details.offline
Added to your shopping cart
Designation
Replaceable Drill Bush
Form
A
Version 1
with collar
DIN Standard
DIN 173
Body material
mild steel
D1=Drill bushes
from 2.5 to 4.0
D1=Internal diameter
3,1
D2=Outside diameter
8

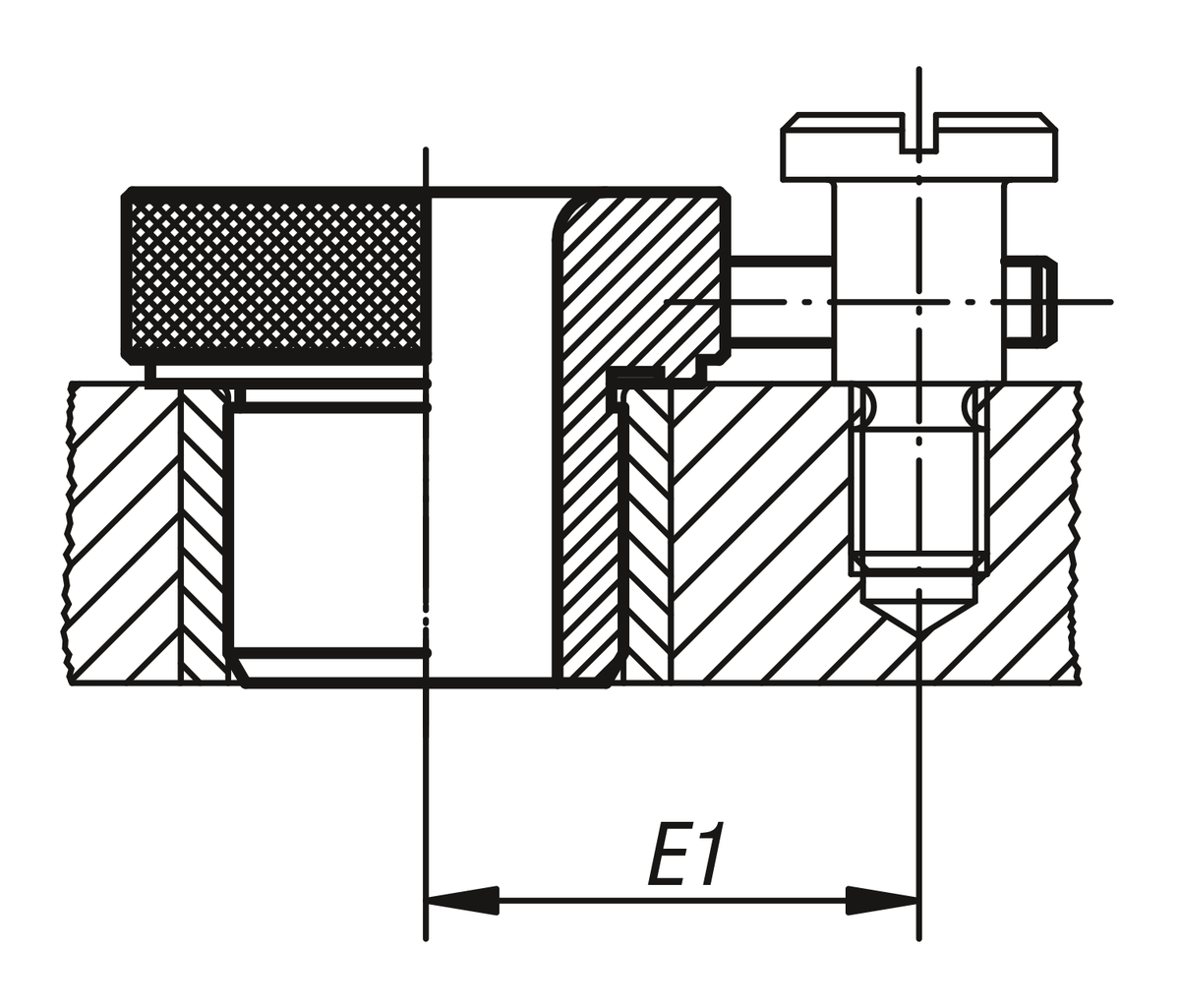

E1=Distance from hole centre
15
L1=Shaft length
10
D3
16
D5
2,5
Form definition
bore rounded one side
L2
10
M
4
R
3
T1
0,02
T2
0,005
Description
Material
Special steel
Version
Hardened to 780 ±40 HV 10 and ground.
Without lead-in groove.
Without lead-in groove.
Note
All bushes have the bore size marked on the upper face, e.g. 10. Diameters D1 over 15 mm increase in size by 0.5 mm.
Dowels or coiled spring pins together with DIN 173-1 flathead screws can be used in place of the stop pin.
Dowels or coiled spring pins together with DIN 173-1 flathead screws can be used in place of the stop pin.
