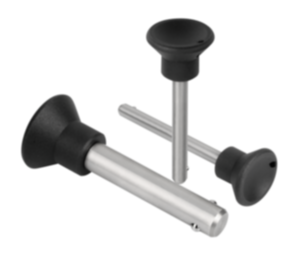

Locking Pin
with mushroom grip
thermoplastic
- For connecting machine parts and workpieces quickly and easily
- Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
- Easy handling
Sales unit
14,28 €
plus sales tax
norelem.product.details.availability.details.offline
Added to your shopping cart
Designation
Locking Pin
Version 1
with mushroom grip
Version 2
with axial locking
Body material
thermoplastic
Component material
stainless steel

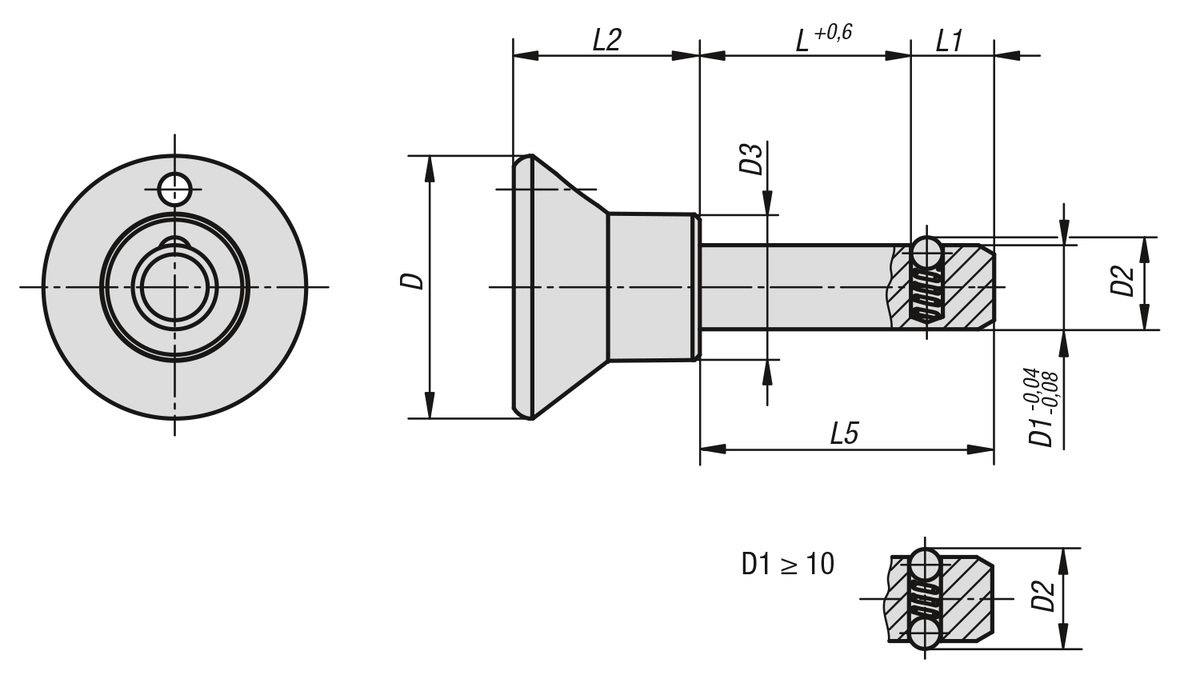

D1=Pin diameter
6
D3=Locating hole H11
6
F4=Shearing force double shear
22
L=Length
30
D
25
D2
6,5
D3
14
L1
7
L2
17,7
L5
37
Description
Material
Grip thermoplastic.
Steel parts stainless steel.
Steel parts stainless steel.
Version
Grip black.
Stainless steel bright.
Stainless steel bright.
Note
Locking pins are used for quick and easy fixating and joining of parts and workpieces.
Shearing force double-shear (F) = S · τ aB max.
Shearing force double-shear (F) = S · τ aB max.
Accessory
Safety spiral cable 03199-10200
Restraining cable with eye 03199-....
Key ring 03199-15/19/23
Bushing for ball lock pins 03197....
Restraining cable with eye 03199-....
Key ring 03199-15/19/23
Bushing for ball lock pins 03197....
