Material
Aluminium EN AW-6082.
Version
Black anodised
Show more
Show less
Description
Material
Aluminium EN AW-6082.
Version
Black anodised
Note

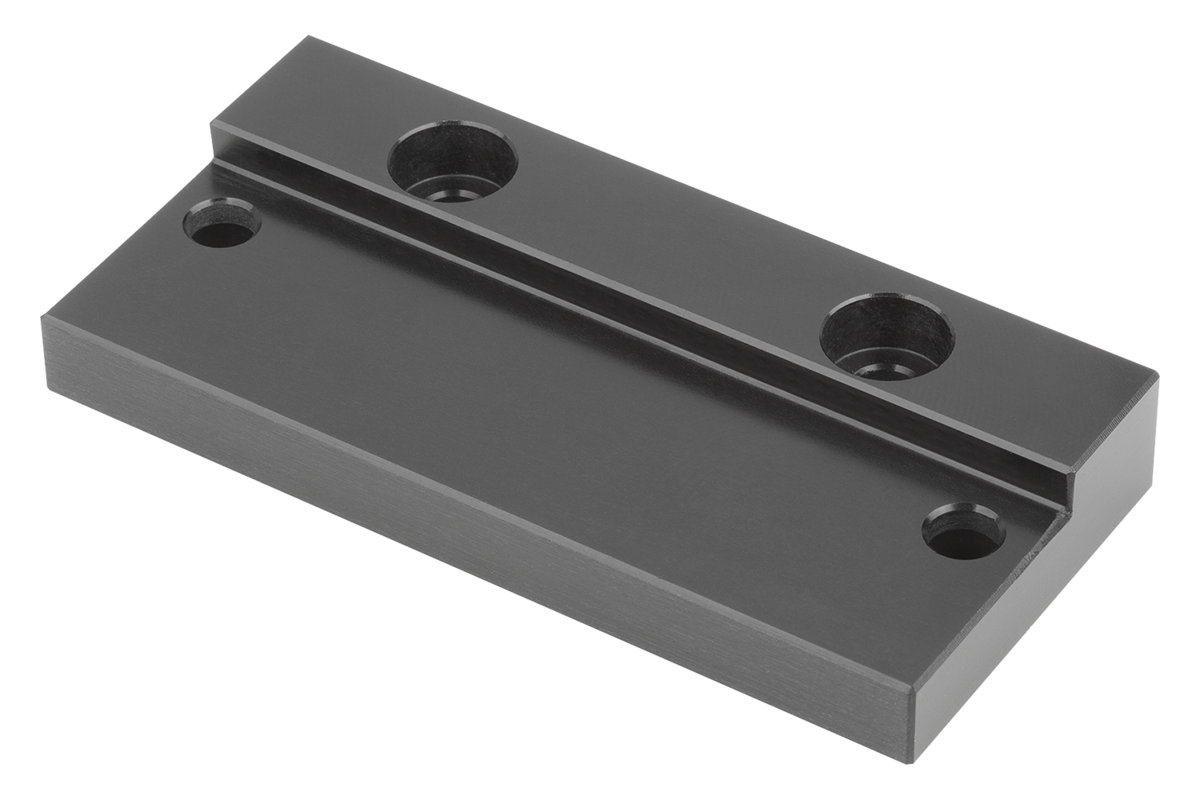

With these mounting brackets, two slides can be connected in an X-Y configuration without any reduction in travel.
In connection with our centring rings 20240, the vertical slide can be centred to fit precisely on the horizontal slide and fastened with screws DIN 912 (07160).
In connection with our centring rings 20240, the vertical slide can be centred to fit precisely on the horizontal slide and fastened with screws DIN 912 (07160).
